Innovative Fixes for 2014 to 2020 Nissan Rogue AC/Heater Repair
Is your 2014–2020 Nissan Rogue Heater Blowing Cold Air on One Side?
After purchasing a used 2018 Nissan Rogue, I discovered the driver's side heat was not working. Research revealed a common issue - the blend door spline connected to the actuator had stripped. After three weeks of designing and testing, I developed a durable nylon 3D-printed repair part to solve the problem without costly system replacement.
Nylon 3D printing keeps the part strong while maintaining an affordable price.
To confirm this issue in your vehicle, download the installation guide to access the actuator. If the spline is stripped, this solution should work for you. This fix has been working reliably in my vehicle since December 2023.
Patent pending
A cost-effective, custom-engineered workaround solution.
The blend door moves close to 90 degrees back and forth. If you are looking at the blend door spline from the driver’s side, counterclockwise is for cold mix and clockwise is for hot mix. What caused the failure mode is that the spline becomes stripped because the motor continues to turn when the blend door stops moving. The blend door moves even when the car is not started, it moves all the way to the cold position when a door (or rear hatch) is opened. This is so the temperature control always starts at the coldest position and then goes to the temperature setting of the controller. The motor continues to run seconds after the door stops to ensure it is at the cold position. This is what eats up the blend door spline.

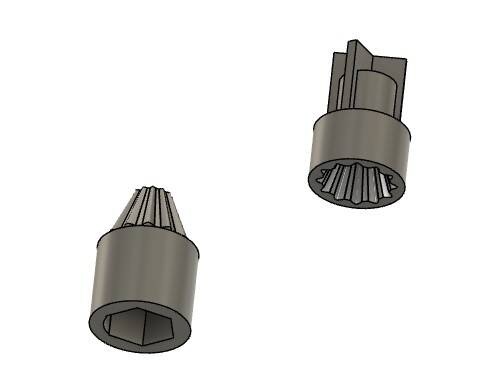

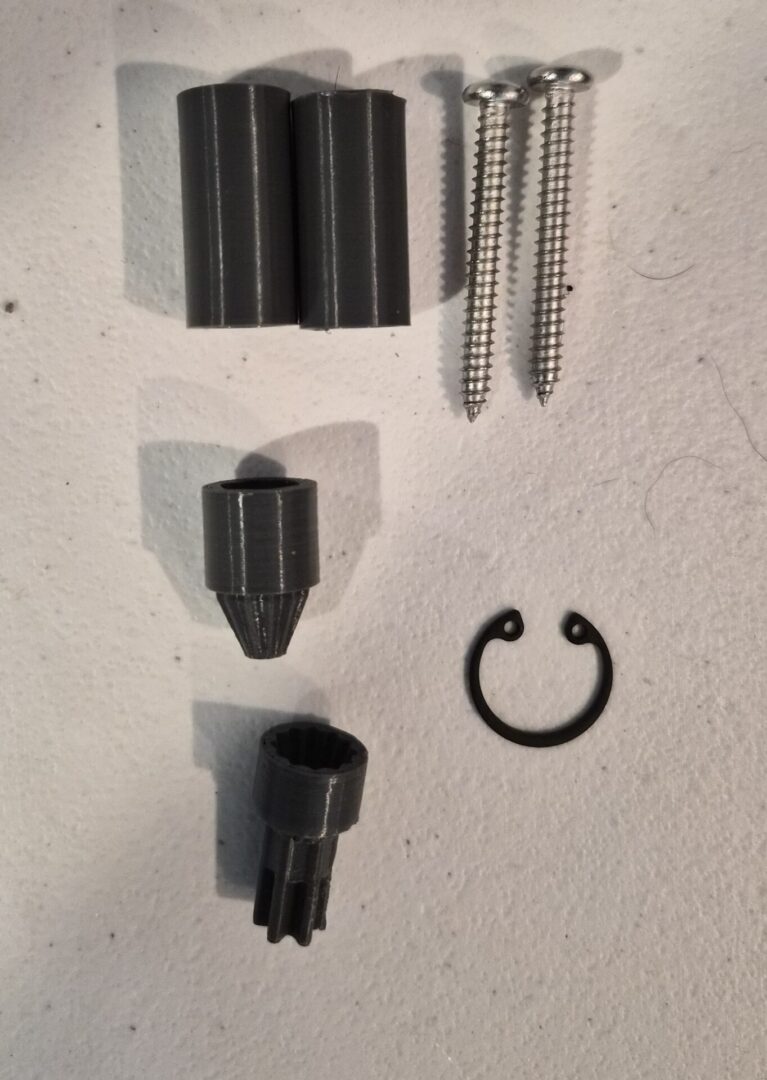

What our kit does is engage with the portion of the spline that has not been damaged and allow the motor to slip when the blend door stops. This limits the force put on the spline, so it will not be damaged any further.
Patent pending
Engineered Advantages
Engineer-Designed Solution
Created by a career engineer to solve a common Nissan Rogue HVAC failure.
Cost-Effective Repair
Avoid expensive system replacements with a practical workaround fix.
Durable Nylon Construction
3D printed using strong nylon material for long-lasting performance.
Real-World Tested
Successfully used in daily driving conditions since December 2023.
DIY-Friendly Verification
An installation guide is included to help confirm the problem before purchase.
Real Customer Experiences
Mike C.
5 Days Ago
Bought the kit for my 2015 Rogue. I do not have the dual climate., “same temperature for both sides”. If you are getting heat on 1 side and cold on the other I'm not sure this will work for you. Call or email Unique to ensure you are getting the correct part. I got the kit in a few days after ordering. It came with all parts needed for the repair. Installation took about an hour "I'm slow". Everything works as it should now. I have heat when I want heat and I have cold when I want cold. Thanks, Unique well thought out and well made part. $70.00 bucks beats the dealer and all other prices out there. Mike 3-12-2026.
Anthony W.
A Month Ago
Thank you! This worked great for my 2015 Nissan Rogue.
Jeremy W.
2 Months Ago
Amazing idea, works flawlessly. Saves thousands in repair bills. Easy to install. Highly recommend. Thank you.
Scott M.
3 Months Ago
Good Evening,
Purchased your repair kit to fix my girlfriend's daughter's 2015 Rogue. Went in with the usual issues working on an unfamiliar vehicle, but solved the problem of heat on only one side or no heat at all. First attempt to mount the actuator with the splined part almost resulted in losing that part. Luckily, I found it and on the second try it went in just fine. Awesome job designing and printing the parts. Saved her daughter a bunch of $$$ and made me a hero. Thank you for all your hard work. Hope you sell a million of them!
Rich M
3 Months Ago
Just purchased this and gave it a shot. Works great! Spoke to my mechanic about it and he is now going to call other customers with the same issue. Great product that saves people from very costly repairs! Thank you !!
Douglas C.
3 Months Ago
Can’t wait to try this kit!!!
Nissan should be ashamed of themselves for making such a cheap part that is not replaceable without buying a whole heater box unit!
Thanks for your ingenuity!!!! I will let you know how it works out.
Doug
John B.
5 Months Ago
Excellent product. Took about two hours to install. The installation video was extremely helpful. Now we have heat on the drivers side, just in time for winter.
Highly recommended if anyone is having this issue.
Thank you,
John
Jason G.
5 Months Ago
Hello, I ordered your kit today. What an awesome improvement you created. My customer is hoping to take this car out of state on Sunday, is there any chance this will be delivered before then? Thank you
Mark R.
5 Months Ago
I CANNOT thank you enough for this. I wish more people started doing things like this. You are an absolute lifesaver. I just got my heat working again just in time for winter. The trickiest part for me was getting the actuator on and screwed in while the spring piece was in place. Found it easier to get the closer screw started then fitting everything else in place. Also, when removing the heating vent, I just removed the front screw then ripped the thing out over the old screw.
Again, I can't thank you enough!!! I feel like I want to send you an xmas present this year! haha.
Rhianda L.
7 Months Ago
OMGoodness, It worked!! This just saved me $3200 CAD. I ordered and this magical piece was shipped out the same day. It arrived today and it took me about an hour to install. I’ve never done any work on a car before and I had to do it in the dark in order to avoid the extreme daytime heat. I cannot tell you how excited I am to have fully functional AC tomorrow! I’m beyond thrilled, thank you so much!
Rhianda
Kristin
8 Months Ago
So grateful for this! For those that want to keep the foot vent cover blowing air on their feet instead of removing it and having air blow on their knees- it is possible. If you want to try this method, don't bother removing the back screw on the foot vent cover (which is a pain to reach anyways.) Just leave that screw installed, remove the front screw on the vent and slide the vent down and out of the way when you install this kit. After installing the blend door kit, slide the vent cover back up into place as much as you can. While I was not able to get it all the way back into place, I was able to get it close enough to get the 2nd screw in, leaving just a narrow gap around the edge of the vent cover. I put some duct tape over the gap, and air is now directed down to the feet area. Initially I tightened the front screw on the foot vent too much, and I think it pinched or obstructed something and the blend door seemed not to work. But I loosened the screw just a tad, and everything works great now.
Curtis T.
9 Months Ago
Purchased as a last resort fix for my wife’s 2015 Rogue before sending to a mechanic. Took me about 30 minutes to install and worked perfectly! Thanks so much for creating this fix and supplying precise instructions!
Zach O.
10 Months Ago
I own a small dealership & my customer ran into this common problem with the Rogue's actuator door. I did some digging online & stumbled across this product on a forum. VERY impressed and pleased with the quality, ease of install & functionality. What a great idea & HUGE money saver! Thanks so much!!
Dana H.
A Year Ago
I am a 60-year-old woman that has been freezing for months every time I had to get into my rogue. I refused to give the dealership $3,000 to repair it and was pleasantly surprised when I stumbled across information in a Nissan forum, leading me to purchase this kit leading to a cheap, quick fix. I am thrilled! Directions were thorough, easy to follow and there's even a video to further explain any questions or reassure you of any doubts you may have. I want to thank you and your wife for all of the work that you put into this. You have been a Godsend. Thank you so much.! My husband is speechless!
Lois
A Year Ago
As someone that's never worked on a car before instructions were very easy to follow I had no problem doing everything. I had one problem it wasn't getting hot at first so I sent a message and he was able to call me and talk to me and we decided that the screws aren't tight enough went in and did that work perfect since then a+ product
Brian G.
A Year Ago
Just installed this kit and it seems to have corrected the problem. If I can make one suggestion, since the heater tube needs to be removed and it's not reinstalled, why not design a vent plate to cut into the side trim and cut the heater tube so that it exits through that flat trim panel that you remove to access the blend door.
Pablo M.
A Year Ago
Hello there !
I got a blend door repair kit for Nissan Rogue from you and it did work great!
I wonder if you guys offer anything like that for a Chevy Uplander (same issue)
Please let me know
I’m interested and willing to buy if you do
Thank you!
Hong L.
A Year Ago
Finally got heat on driver side after 2 years,. Used the new designed in kit and it seem to work better. Thank you!
William G.
A Year Ago
Great product! Great instructions! Happy it worked out so well for us!!! Thank you!!!
Jay W.
A Year Ago
I want to thank you so much for this kit!!! My daughter is a school teach and she could not afford the $3500 repair cost from Nissan. Your clear instructions allowed me to make the repair in about 2 hours with no real hiccups. Thanks to you she will now have heat driving to work and back. Eternally grateful Jay W.
Proven in Real-World Use
Your feedback helps others understand how this engineered solution performs in real conditions.
